SimNAVA titration of NAVA level

This study compared SimNAVA during NAVA titration with 12 patients ventilated under NAVA after ARDS in our intensive care unit.

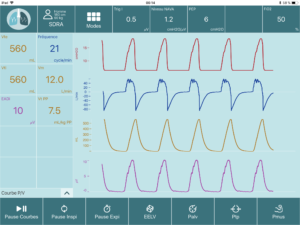

Sceencopy of NAVA mode on SimVA, weaning of an ARDS patient, bottom curve represents EAdi (10 uvolts) with a NAVA level of 1.2 cmH2O/uvolt, EAdi is adaptive to respiratory effort and control of breathing.
